FA-10

$749.00

16 Watt headphone amplifier

Clear
SKU: FA10 Category:

Description

Feel the full-range dynamics and control with the new FLUX FA-10. Specially engineered to deal with most hard to drive headphones on market. Just forget about the problem with difficult loads in terms of impedance or power consumption

The market of headphones grows each year. But wide number of great, hard to drive headphones are stayed on the bookshelf. Why!? Because of one problem which is still didn’t solved. When you need a power you should spend a funds . . . a lot of funds. We decided to break that vicious circle. The FA-10 is the refined answer for those who wants to get most powerful and outstanding value headphones amplifier on market for an extremely good value

Class A precision and speed

The FA-10 amplifier circuits are employing J-Fet input stage and Toshiba bipolar transistors at class A mode with a supply voltage of 80 volts of output stage all that features are providing clean transmission for signal up to 16 Watt on 32 Ohm load of output power

Flexibility

Three GAIN modes give you unique flexibility to use the amplifier with a wide range of headphones without loss of sound performance quality

Fine attenuation

High transparency at any volume level and absence of even minimal unbalance of the channels, allows you to get more accurately set the volume level thanks to 64-step relay volume control attenuator

Clean power

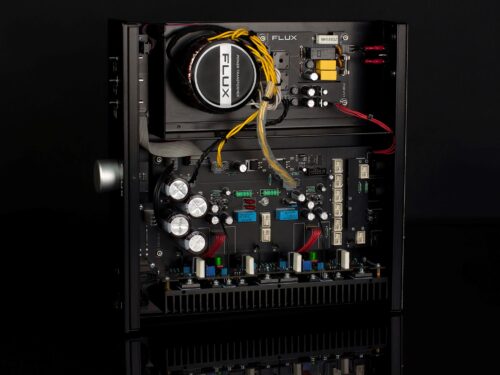

Main foundation of the amplifier is a custom made, low-noise powerful toroidal power transformer with a low-noise power supply

Perfect fit

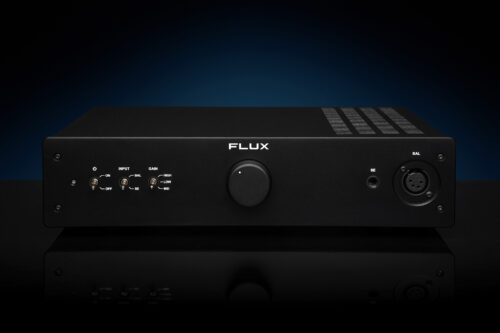

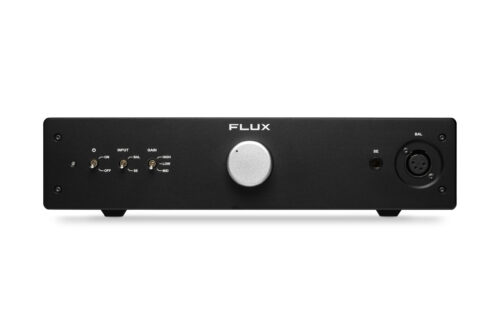

Classic design unit with the milled CNC face panel easily become a decent element of your desktop head-fi system

Additional information

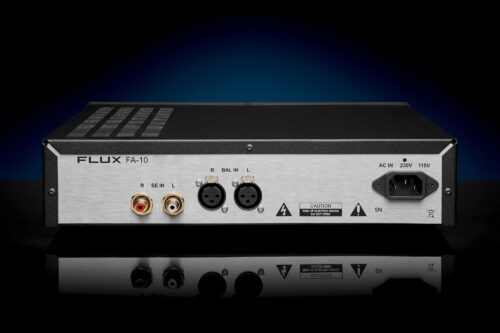

Analog inputs

balanced XLR, single-ended RCA

Analog outputs

4-pin balanced female XLR headphone out, TRS headphone out

AMP Frequency Response

5Hz-200kHz, -3dB

Output power

300Ohm: 1.7W RMS per channel, 32Ohm: 16W RMS per channel, 600Ohm: 1W RMS per channel

THD

0.008%

Input Impedance

10kOhm (SE input), 3.3kOhm (BAL input)

Output Impedance

0.15Ohm

Gain

14dB, 20dB, 25.3dB

Power Consumption

55W

Voltage

EU-230V, US-115V

Weight

11.2lbs (5.1kg)

Dimensions

12.6 x 13.4 x 3.15 inch (320 x 340 x 80 mm)
