Description

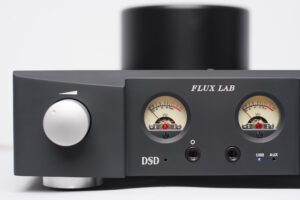

The tube amplifier uses directly heated triodes 2A3 on the output stage, output transformers help with the matching of the load. For low-impedance and high-impedance headphones, several operation modes of the secondary winding of the output transformers are provided. FLUX LAB TA-212.1 amplifier builds up sufficient output power to provide high-quality gain for orthodynamic/ isodynamic headphones with low-sensitivity.
Technical Features:
- Headphone Impedance: 16 – 600 Ω
- Input Impedance: 50 kΩ
- Frequency Responce: 10 Hz – 70 kHz -3dB
- Output power: <=3W
- SNR: 94 dB
- Harmonic Distortion: <=0,2%
- Power Supply: AC 230V, 50/60Hz
- Power Input: 110 W
- Weight: 20 kg (44 lb)
Vacuum Tubes:
- 2 x 6SN7 driver tubes
- 2 x 2A3 output tubes
2 x 5U4G rectifier tube
