FA-12 Balanced Class-A Head-Amplifier

$749.00

True balanced headphone amplifier

Clear
SKU: FA12 Category:

Description

FLUX FA-12 is the true balanced topology headphone amplifier called to deliver warm, engaging character of the sound which will not leave indifferent even the most sophisticated listeners

Features

  • Fully balanced topology
  • Class A
  • JFET inputs
  • MOSFET outputs
  • 64-step relay volume control attenuator
  • Premium components: Nichicon, TAKMAN, NIPPON, FUJITSU-TAKAMISAWA etc.
  • Powerful toroidal transformer

Additional information

Weight 6.6 kg
Dimensions 46 × 42 × 18 cm

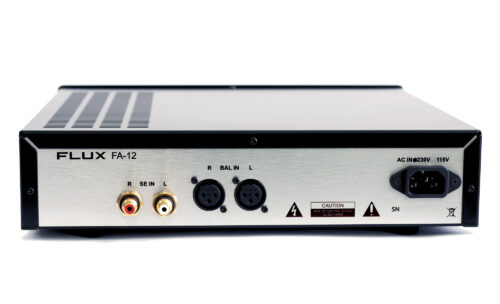

Analog inputs

balanced XLR, single-ended RCA

Analog outputs

4-pin balanced female XLR headphone out, TRS headphone out

AMP Frequency Response

1Hz-1MHz, -3dB

Output power

300Ohm: 360mW RMS per channel, 32Ohm: 2600mW RMS per channel, 50Ohm: 1700mW RMS per channel

THD

<0.001%

IMD

<0.006%

SNR

>110dB, unweighted

Crosstalk

>95dB, 20 Hz-20KHz

Output Impedance

0.1Ohm

Input Impedance

10kOhm (SE input), 20kOhm (BAL input)

Gain

15.1dB, 23.9dB, 3.5dB

Power Consumption

45W

Voltage

EU-230V, US-115V

Weight

11.2lbs (5.1kg)

Dimensions

12.6 x 13.4 x 3.15 inch (320 x 340 x 80 mm)
