FA-12S Class-A Head-Amplifier / Pre-Amp

$499.00

Class-A headphone amplifier

Clear
SKU: FA12s Category:

Description

FLUX FA-12S is the unique design headphone amplifier called to deliver great flexibility of your head-fi system with the engaging character of the sound which will not leave indifferent even the most sophisticated listeners

Features

  • Class A
  • JFET inputs
  • MOSFET outputs
  • 64-step relay volume control attenuator
  • Premium components: Nichicon, TAKMAN, NIPPON, FUJITSU-TAKAMISAWA etc.
  • Powerful toroidal transformer
  • PRE OUT

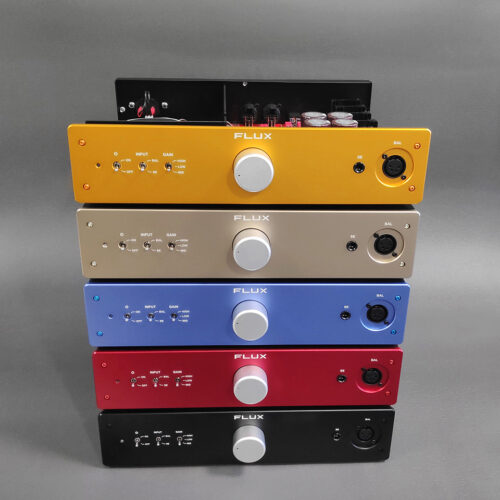

* Face panel colour option is available under the request

Additional information

Analog inputs

balanced XLR, single-ended RCA

Analog outputs

4-pin balanced female XLR headphone out, single-ended RCA preamp, TRS headphone out

AMP Frequency Response

1Hz-1MHz, -3dB

Output power

16Ohm : 2W RMS per channel, 32Ohm : 1W RMS per channel

THD

<0.001%

IMD

<0.006%

SNR

>110dB, unweighted

Crosstalk

>95dB, 20 Hz-20KHz

Output Impedance

0.1Ohm

Input Impedance

10kOhm (SE input), 3.3kOhm (BAL input)

Output Resistance Preamp

RCA 50Ohm

Gain

15.1dB, 23.9dB, 3.5dB

Power Consumption

27W

Voltage

EU-230V, US-115V

Weight

9 lbs (4.1 kg)

Dimensions

12.6 x 11 x 3.15 inch (320 x 280 x 80 mm)
